STANDARD RL5000 SPECIFICATION
• 50mm ball coupling with barrel lock and safety ball
• Heavy duty jockey wheel
• LED lights
• Manual tilt bed

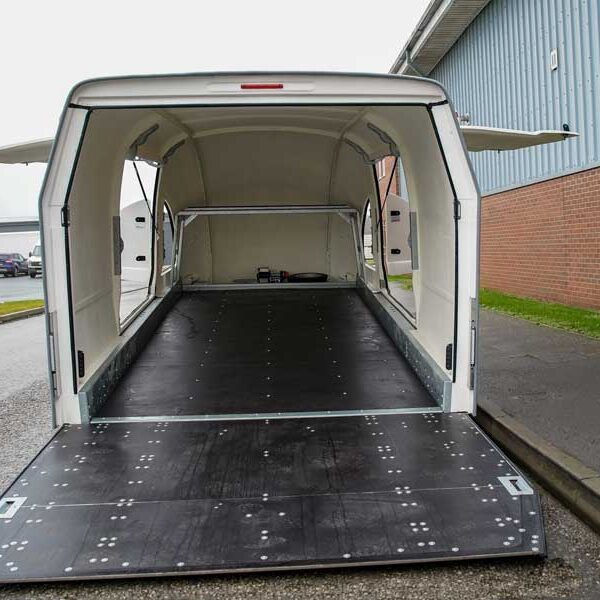

• Steel ramp
• Tailgate
• Two front access door

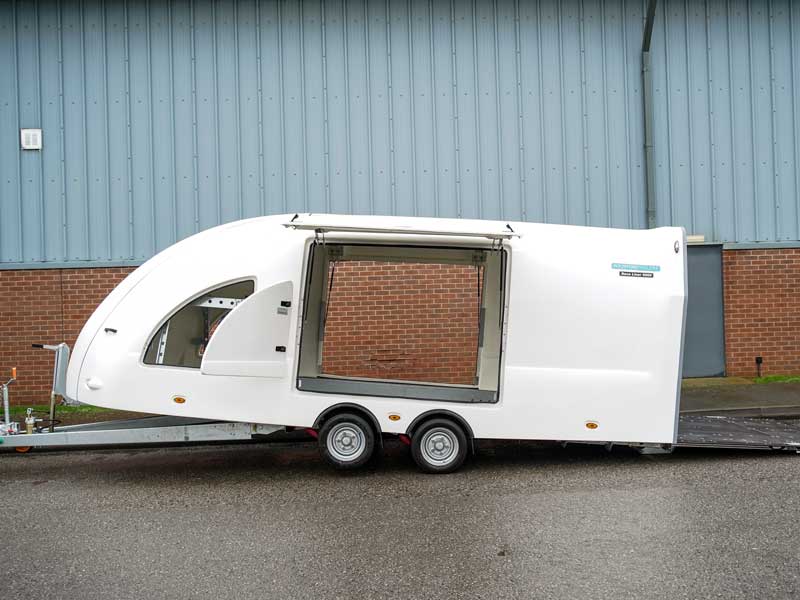

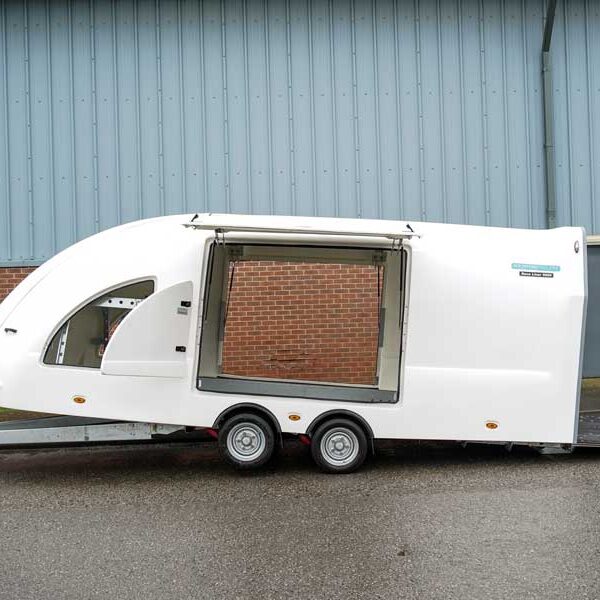

• Two main side wing doors

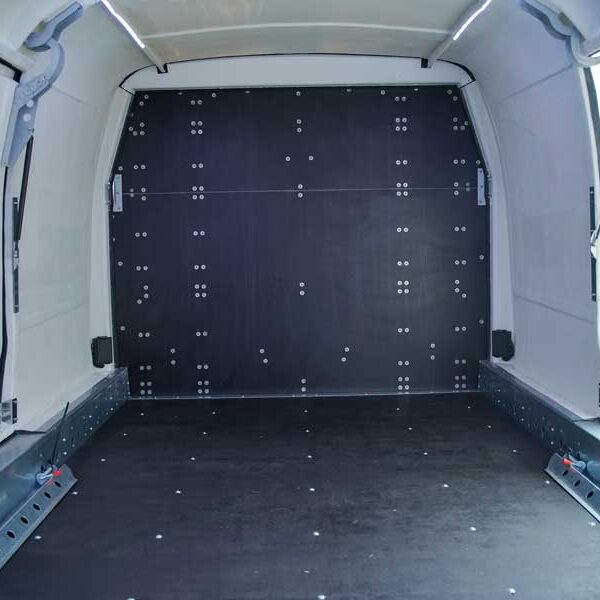

• Internal LED lights
Full Specification
| Model No. | Bed Size (ft/in / mm) | Load (kg) | Gross (kg) | Empty (kg) | Overall Height (mm) | Ramp Length (mm) | Front Storage Space (mm) | Axles (number) | Wheel Size (inches) | Overall Length (mm) | Overall Width (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RL5020 | 16′ X 6′ 3.5” tilt bed (4870 x 1900) | 1580 | 2600 | 1020 | 2400 | 1820 | 500 | 2 | 12″ 155/5 Stud | 7000 | 2350 |
| RL5021 | 16′ X 6′ 3.5” tilt bed (4870 x 1900) | 1970 | 3000 | 1030 | 2400 | 1820 | 500 | 2 | 12″ 155/5 Stud | 7000 | 2350 |
| RL5022 | 16′ X 6′ 3.5” tilt bed (4870 x 1900) | 2340 | 3500 | 1160 | 2400 | 1820 | 500 | 2 | 12″ 155/5 Stud | 7000 | 2350 |
| RL5040 | 16′ X 6′ 11” tilt bed (4870 x 2100) | 1560 | 2600 | 1040 | 2400 | 1820 | 500 | 2 | 12″ 155/5 Stud | 7000 | 2530 |
| RL5041 | 16′ X 6′ 11” tilt bed (4870 x 2100) | 1950 | 3000 | 1050 | 2400 | 1820 | 500 | 2 | 12″ 155/5 Stud | 7000 | 2530 |
| RL5042 | 16′ X 6′ 11” tilt bed (4870 x 2100) | 2320 | 3500 | 1180 | 2400 | 1820 | 500 | 2 | 12″ 155/5 Stud | 7000 | 2530 |
Optional Extras
| Extras | Product |
| 25SPS12F | WARRIOR NINJA 2500 winch 12V Steel rope |
| 35SPA12F | Warrior Ninja 3500 winch synthetic rope |
| 35SPS12F | WARRIOR NINJA 3500 winch 12V Steel rope |
| 45SPA12F | Warrior Ninja 4500 winch 12v Synthetic rope |
| 45SPS12F | WARRIOR NINJA 4500 WINCH 12v Steel rope |
| 950VA12F | Warrior Samurai Next Gen 9500 winch 12v Synthetic |
| 950VS12F | Warrior Samurai next gen 9500 winch 12v Steel rope |
| 95DVA12F | Samurai Next Gen 9500 Short Drum Winch 12V Steel |
| AKSA01 | 3000KG AL-KO STABILISER for 2600kg, 3000kg |
| AKSA02 | 3500KG AL-KO STABILISER for 3500kg |
| EHTILT | Electric hydraulic tilt system |
| OP002 | Centre deck storage (underfloor storage) |
| OP014 | SET OF 4 MEDIUM DUTY STRAPS WITH LOOPS |
| OP015 | SET OF 4 HEAVY DUTY STRAPS WITH LOOPS |
| OP016 | TYRE RACK (ADJUSTABLE) WEIGHT 39KG |
| OP024 | Adjustable wheel stop full width |
| OP026 | SECOND SPARE WHEEL |
| OP027 | Additional led internal lighting (2 sensor led lights) |
| OP028 | Shock Absorber |
| OP030 | ASSISTOR RAMPS SET OF 2 (ALUMINIUM) |
| OP031 | WIRELESS REMOTE CONTROL FOR ELECTRIC WINCH |
| OP033 | 4 Jerry can box |
| OP290 | 12″ Alloy wheels upgrade |
| WK45012SBF | 4500LB 12V WINCH SYNTETIC ROPE |
| WK45012WBF | 4500LB WINCH STEEL WIRE WITH WIRED CONTROLLER |
| WK95012SF | 9500LB SYNTHETIC ROPE 42.3KN 12V |
| WK95012WF | 9500LBS 42.3KN 12V WINCH STEEL WIRE |
| WTDT | DOUBLE TYRE RACK |
| WTTFL | FULL LENGTH TIE DOWN RAILS |
