As standard with all Galaxy trailers:
• Electric hydraulic tilt bed
• Strong chassis with upgraded axles
• Choice of 2 different widths, heights and lengths
• Half aluminium chassis with honeycomb floor
• Internal strip led and two sensor lights

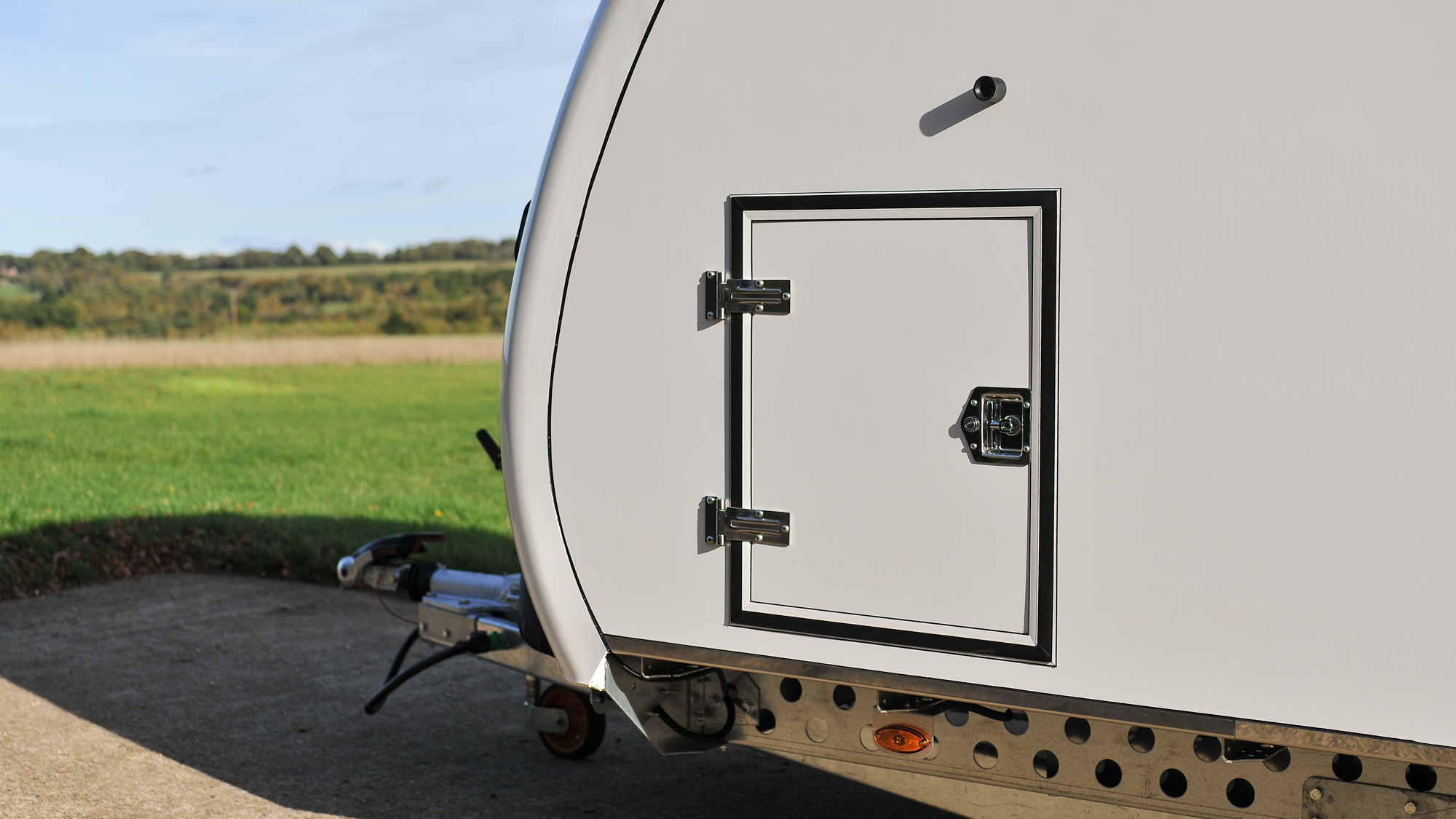

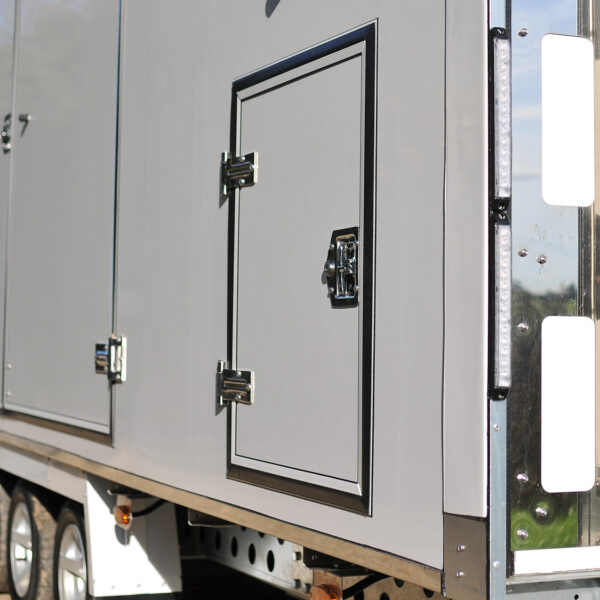

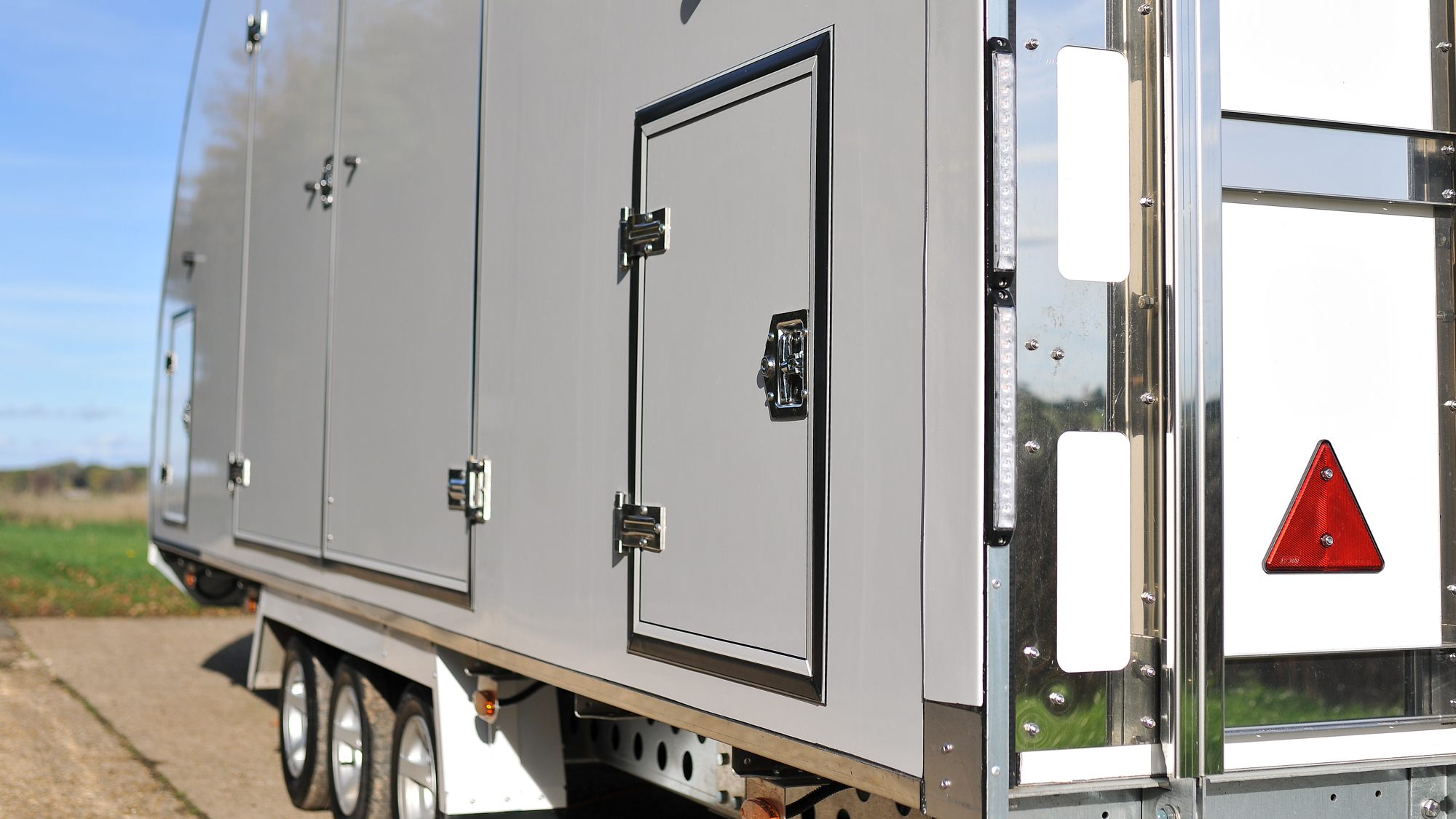

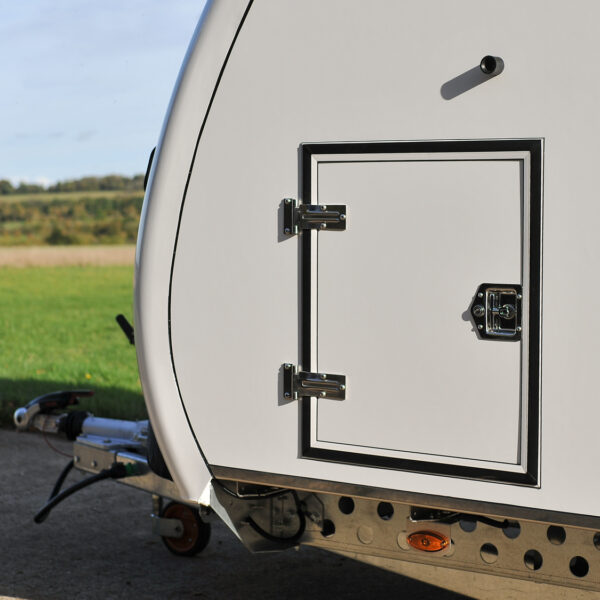

• Two front and two rear hatch doors

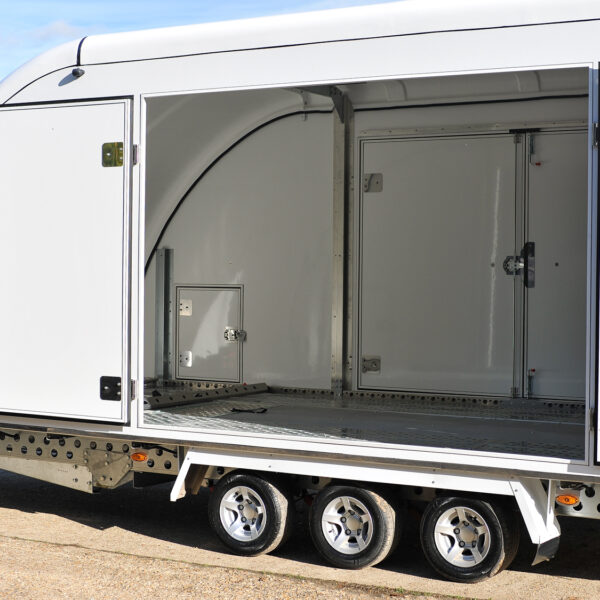

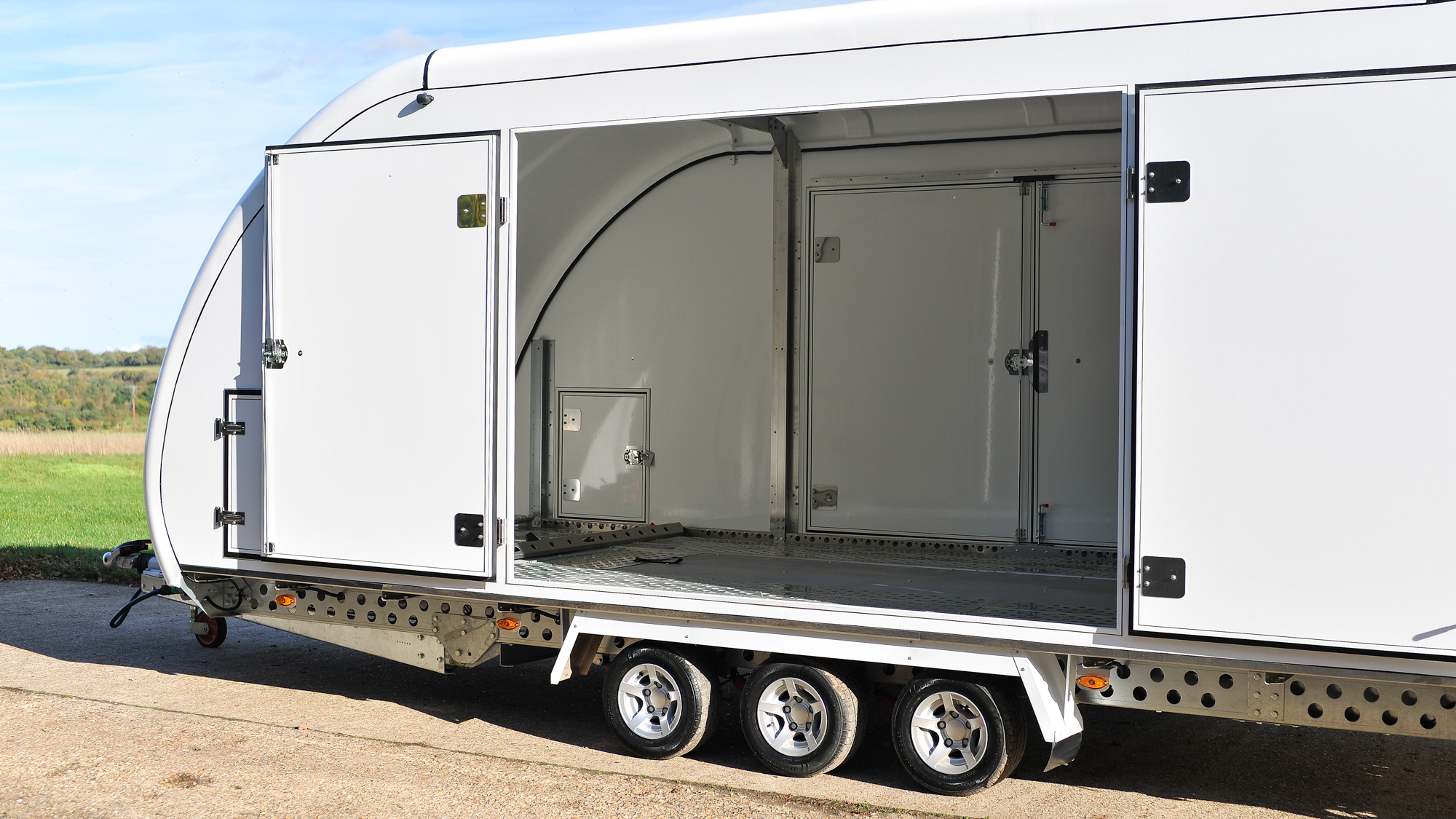

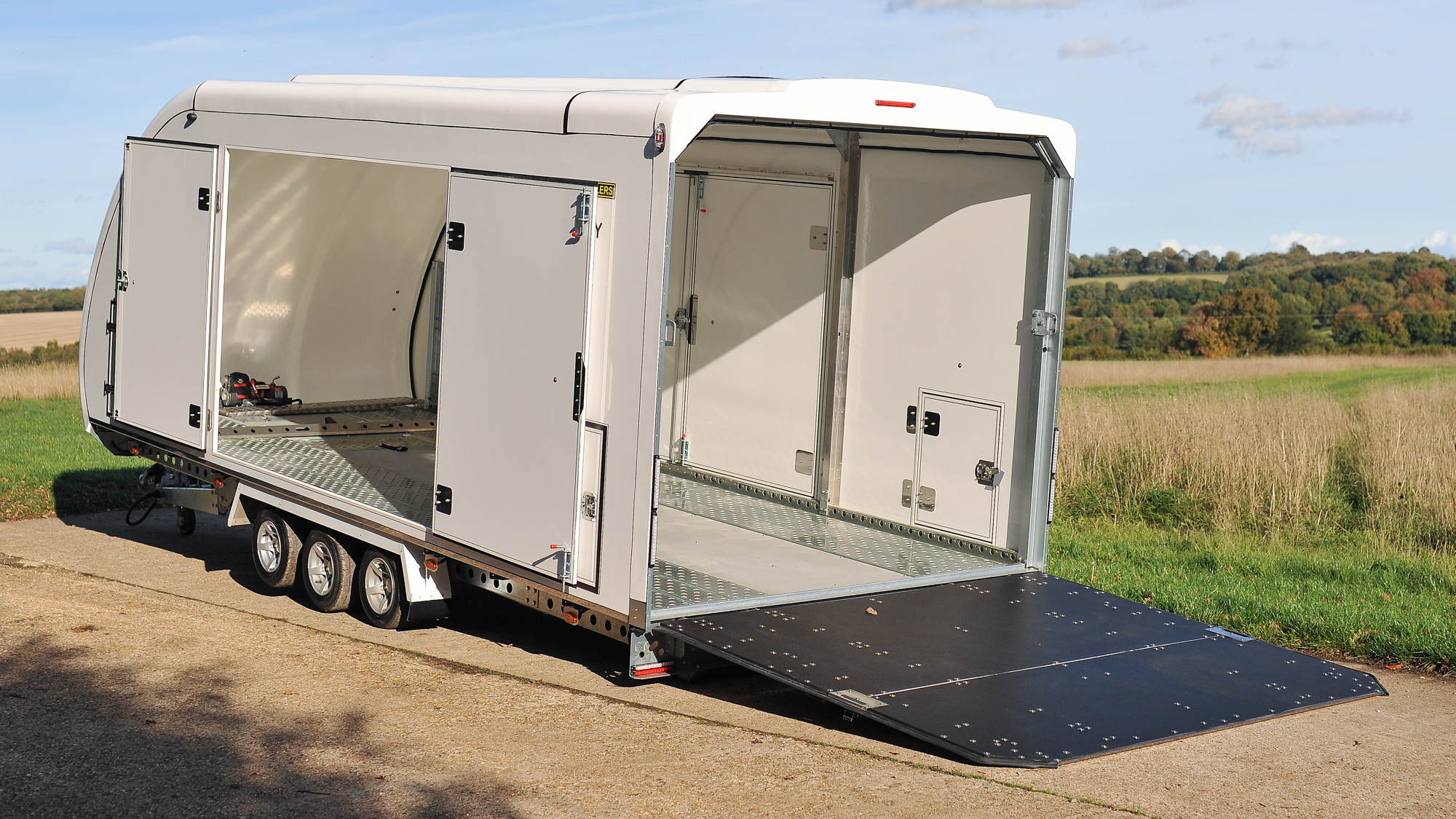

• Two main 2.5 metre doors with centre opening
• Under floor storage section
• Wheel chock
• Alloy wheels and two spare wheels
• Shock absorbers

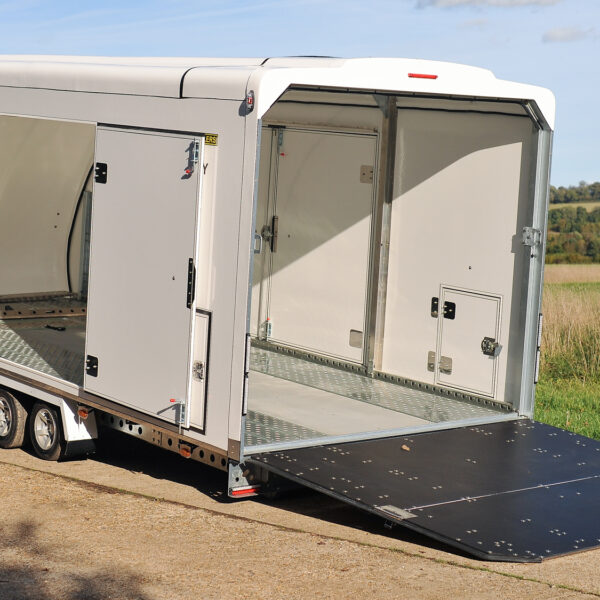

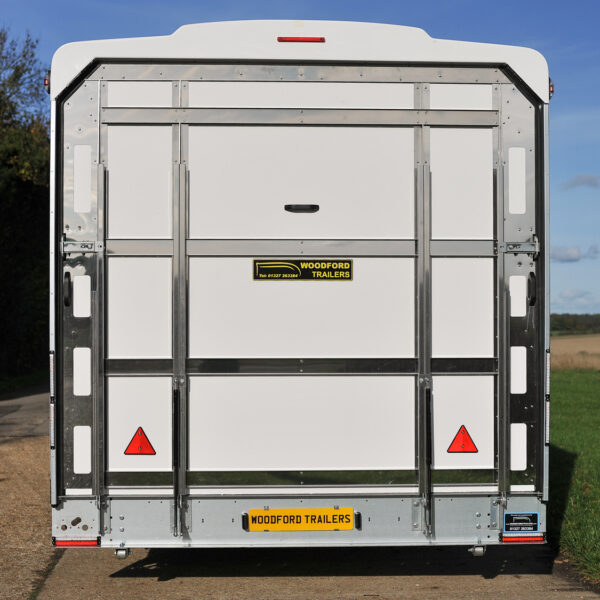

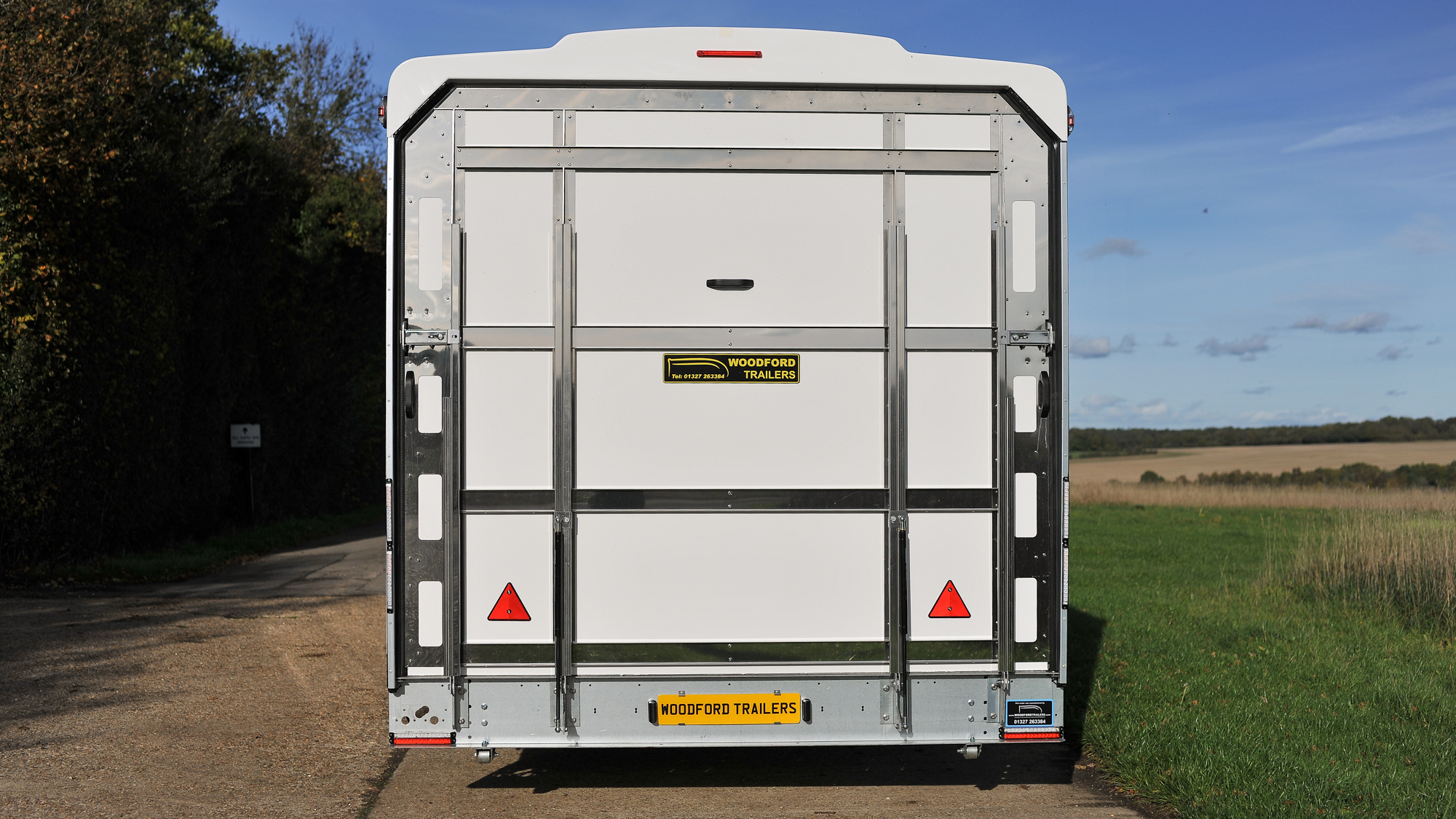

• Stainless tailgate with heavy duty clamps and locks
• Rear supporting rollers instead of skids
• Set of 4 heavy duty straps and hooks
• 9500lb short drum electric winch with nylon cable
• Stabiliser alko coupling
• Assister ramps allowing 1.5 degree loading angle
• Aluminium full length 600mm
• Double tie down rails
Full Specification
| Model No. | Bed Size (ft/in) | Bed Size (mm) | Load KG | Gross KG | Empty KG | Axles | Overall Height (mm) | Tailgate Length (mm) | Front Storage Space (mm) | Wheel Size | Overall Length (mm) | Overall Width (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GALAXY | 18′ X 7′ or 7’8” tilt bed | 5500 x 2170 or 2370 | 2250 | 3500 | 1250 | 3 | 2800 | 2030 | 250 | 10’’ – 195 / stud 112 pcd | 7500 | 2300, 2500 |
| GALAXY | 20′ X 7′ or 7′ 8” tilt bed | 6100 x 2170 or 2370 | 2200 | 3500 | 1300 | 3 | 2900 | 2130 | 250 | 10’’ – 195 / stud 112 pcd | 8100 | 2300, 2500 |

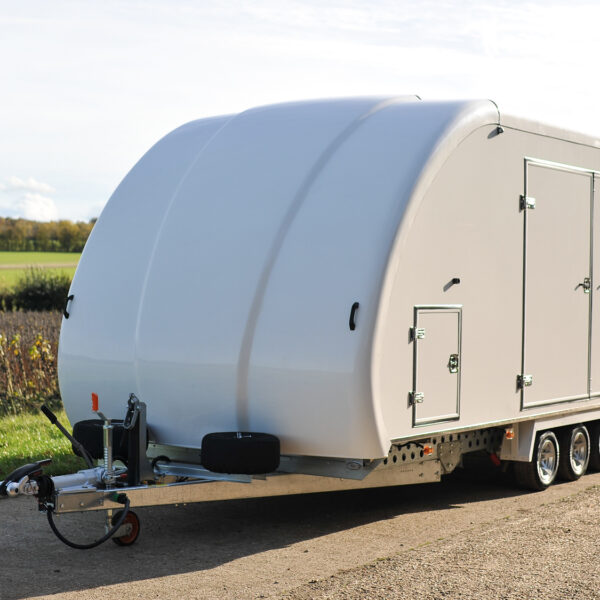

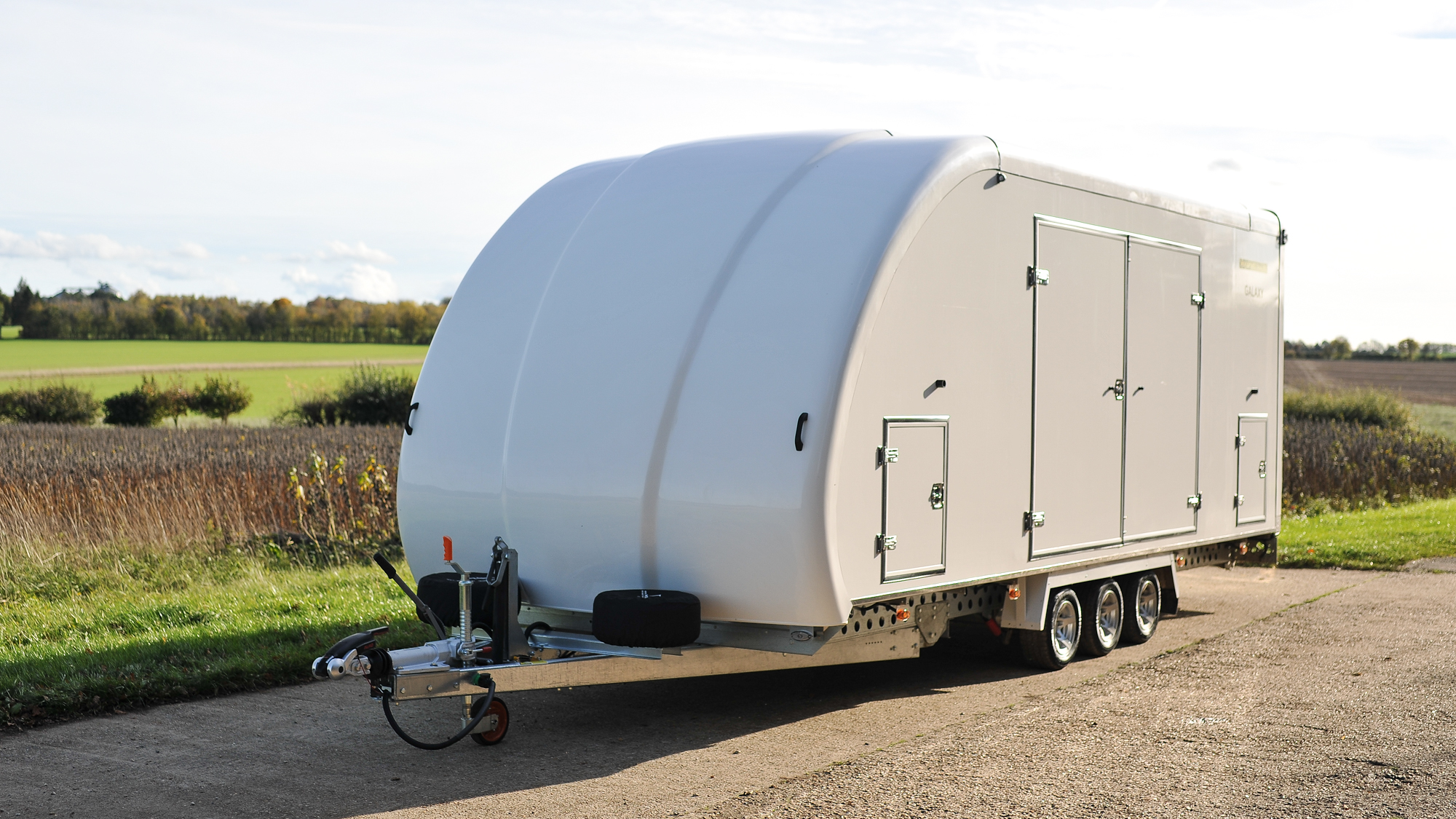

The Galaxy models come with 3 axles and can be fitted with optional shock absorbers and many extras to suit your needs.
