STANDARD STANDARD SPECIFICATION:
• Spare wheel on bracket
• When no tilt supporting loading legs
• 50mm ball coupling with barrel lock and safety ball
• Heavy duty jockey wheel
Full Specifications
| Model | Bed Dimensions | Load (kg) | Gross (kg) | Empty Trailer Weight (kg) | Axles | Wheel Size (inches) | O/A Width (mm) | O/A Length (mm) | Loading Angle (degrees) | Gap Between Runways (mm) | Ramp Length (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| STT020 | 12’x6’1”T (3660 x 1850) | 1150 | 1500 | 350 | 1 | 12 | 2330 | 5275 | 13 | 990 | No Ramps |
| STT030 | 12’x6’1” (3660 x 1850) | 2110 | 2600 | 490 | 2 | 12 | 2330 | 4974 | 13 | 990 | 1500 |
| STT050 | 13’x6’1” (3960 x 1850) | 2105 | 2600 | 495 | 2 | 12 | 2330 | 5274 | 13 | 990 | 1500 |
| STT070 | 14’x6’1” (4260 x 1850) | 2100 | 2600 | 500 | 2 | 12 | 2330 | 5574 | 13 | 990 | 1500 |
| STT080 | 14’x6’1”T (4260 x 1850) | 2100 | 2600 | 500 | 2 | 12 | 2330 | 5824 | 15 | 990 | No Ramps |
| STT090 | 14’x6’1”TWR (4260 x 1850) | 2070 | 2600 | 530 | 2 | 12 | 2330 | 5824 | 5 | 990 | 1500 |
| STT100 | 14’x6’1” (4260 x 1850) | 2494 | 3000 | 506 | 2 | 12 | 2330 | 5574 | 13 | 990 | 1500 |
| STT110 | 14’x6’1”T (4260 x 1850) | 2494 | 3000 | 506 | 2 | 12 | 2330 | 5874 | 15 | 990 | No Ramps |
| STT120 | 14’x6’1”TWR (4260 x 1850) | 2494 | 3000 | 536 | 2 | 12 | 2330 | 5874 | 5 | 990 | 1500 |
| STT190 | 16’x6’1” (4870 x 1850) | 2084 | 2600 | 516 | 2 | 12 | 2330 | 6137 | 13 | 990 | 1500 |
| STT200 | 16’x6’1”T (4870 x 1850) | 2084 | 2600 | 516 | 2 | 12 | 2330 | 6427 | 15 | 990 | No Ramps |
| STT210 | 16’x6’1”TWR (4870 x 1850) | 2054 | 2600 | 546 | 2 | 12 | 2330 | 6427 | 5 | 990 | 1500 |
| STT220 | 16’x6’1” (4870 x 1850) | 2478 | 3000 | 522 | 2 | 12 | 2330 | 6137 | 13 | 990 | 1500 |
| STT230 | 16’x6’1”T (4870 x 1850) | 2478 | 3000 | 522 | 2 | 12 | 2330 | 6477 | 15 | 990 | No Ramps |
| STT240 | 16’x6’1”TWR (4870 x 1850) | 2448 | 3000 | 552 | 2 | 12 | 2330 | 6477 | 5 | 990 | 1500 |
| STT250 | 16’x6’1” (4870 x 1850) | 2850 | 3500 | 650 | 2 | 12 | 2330 | 6137 | 13 | 990 | 1500 |
T = Tilt
TWR = Tilt With Ramps

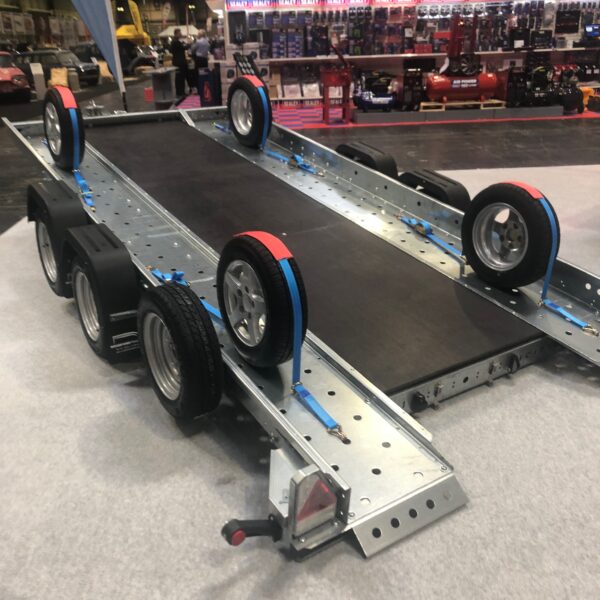

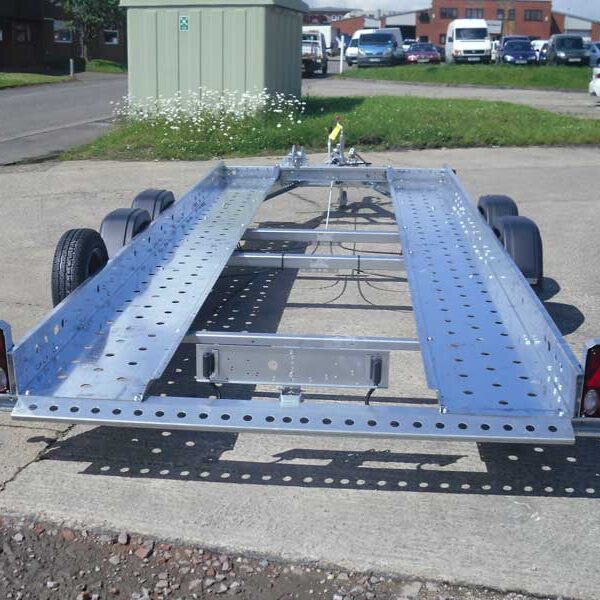

All our standard trailers come with a spare wheel, hitch lock and supporting drop down legs. They are available in single, twin and triple axle options with additional bespoke options of a tyre rack, storage boxes, winch, wheel chocks & extra lights. The ramps pull out from under the runways and are available with tilt and tilt with ramp options as extras.
Optional Extras
| Extras | Product |
|---|---|
| 25SPA12F | Samurai Next Gen 12000 Winch 12v Steel Rope |
| 25SPS12F | WARRIOR NINJA 2500 winch 12V Steel rope |
| 35SPA12F | Warrior Ninja 3500 winch synthetic rope |
| 35SPS12F | WARRIOR NINJA 3500 winch 12V Steel rope |
| 45SPA12F | Warrior Ninja 4500 winch 12v Synthetic rope |
| 45SPS12F | WARRIOR NINJA 4500 WINCH 12v Steel rope |
| OPO001 | Centre deck kit (18mm Buffalo board) |
| OP006 | 2 JERRY CAN HOLDER/FUEL BOX |
| OP007 | 3 JERRY CAN HOLDER/ FUEL BOX (Not available for tilt beds) |
| OP009 | STRAP BOX 9 WEIGHT 9.2 KG |
| OP014 | SET OF 4 MEDIUM DUTY STRAPS WITH LOOPS |
| OP014/1 | SET OF MEDIUM DUTY STRAPS |
| OP015 | SET OF 4 HEAVY DUTY STRAPS WITH LOOPS |
| OP015/1 | SET OF HEAVY DUTY STRAPS (OVERWHEEL) |
| OP017 | PAIR OF TWO WHEEL STOPS |
| OP019 | MANUAL 2 SPEED WINCH 2500LB |
| OP020 | MANUAL SINGLE SPEED WINCH 3200LB |
| OP021 | MANUAL SINGLE SPEED WINCH 3500LB |
| OP026 | SECOND SPARE WHEEL |
| OP031 | WIRELESS REMOTE CONTROL FOR ELECTRIC WINCH |
| OP100 | LED LIGHTS UPGRADE |
| WK45012SBF | 4500LB 12V WINCH SYNTHETIC ROPE |
| WK45012WBF | 4500LB WINCH STEEL WIRE WITH WIRED CONTROLLER |
| WTSWC | Spare wheel soft cover |
